SPIR-IDENT
Carborne and Airborne Spectrometry
Feature Highlights
Very sensitive nuclear detection and real time identification
For mobile use: car, boat, helicopter or airplane
Potential radiological threat search with Homeland Security algorithm
After event contamination mapping
Versatile configuration 1 to 4 detectors, 2 to 16 liters NaI(TI)
Rugged detection case and wireless tablet PC
GPS and mapping function

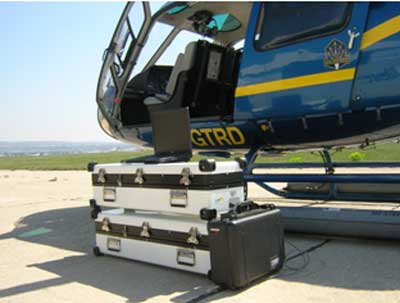

SPIR-IDENT system is a movable radiation monitoring system, developed for vehicle, helicopter and aircraft.
It is a ruggerized and friendly deployable equipment with the higher existing capability for both detection and identification or radioactive sources.
This system especially allows to detect artificial gamma isotopes among varying natural isotopes when used as an airborne or carborne system for the purpose of contamination evaluation and unattended source search.

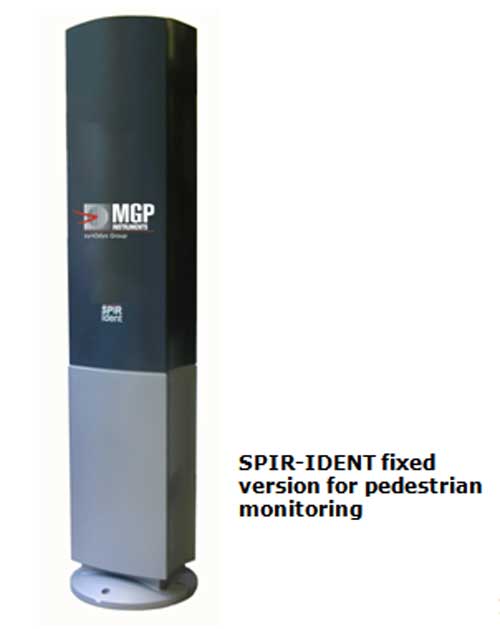

SPIR-IDENT also exists as pedestrian portal monitor.
Description
1 to 4 detection units including 1 or 2 NaI(Tl) detectors (2 or 4 liter), MCAs and optional neutron detectors
1 interface unit with WiFi or wire PC link batteries, charger, DC and AC power supply
1 wireless ruggedized tablet PC with GPS
SIA identification algorithm designed for challenging Homeland Security issues
Simplified SpirMOBILE interface, based on GoogleEarth or RadiaMap interface based on ESRI Geographical Information System
Optional altitude acquisition module
Option remote transmission and remote commander station
Functions
1 second continuous elementary spectra acquisition and stabilization
Count rate/dose rate profile display
Single total channel or multi channels parallel operation
Continuous sliding spectra identification.
Alarm filtering according customer criteria
Simplied panel display ( level/ ID; instant or trend)
Expert display ( spectra, trend, raw and filtered ID)
Mapping: trajectory with level indication and alerts locations flags
Georeferenced database and replay capability
Performances
Typical 4 liters detector: for 137Cs, 8% resolution and 37cps per nSv/h sensitivity
1024 channels fast MCA, one per detector
Energy range 30keV to 3 MeV
Identification up to 4 isotopes mixed (in addition of background), with confidence level and quantification indication
Isotopes list according ANSI N42-34, N42-38, IEC62327, IEC 62484 draft, IAEA Tecdoc
User selectable alarm criteria
User calibration for quantification output
Characteristics
Polyester resin strengthened with glass fiber containers
Size:
- Single detector case: 84x24x24cm (33x9x9 in), 18 kg (39.7 lb) (2l), 24 kg (52.9 lb) (4l)
- Double detector case: 90x42x33cm (35x16x13 in), 35kg (77 lb) (2l), 49 kg (108 lb) (4l)
- Interface case: 90x43x33 cm (35x17x13 in), 20 kg (44 lb)
- Roof case 4 detectors (2l): 195x130x50cm (76x51x19 in), 120 kg (264.5 lb)
Operating temperature range: -20°C to +50°C (-68°F to +122°F), temperature shock protected
Power supply: vehicle 10-30 VDC or main 85-264 VAC
